Rotary Tiller

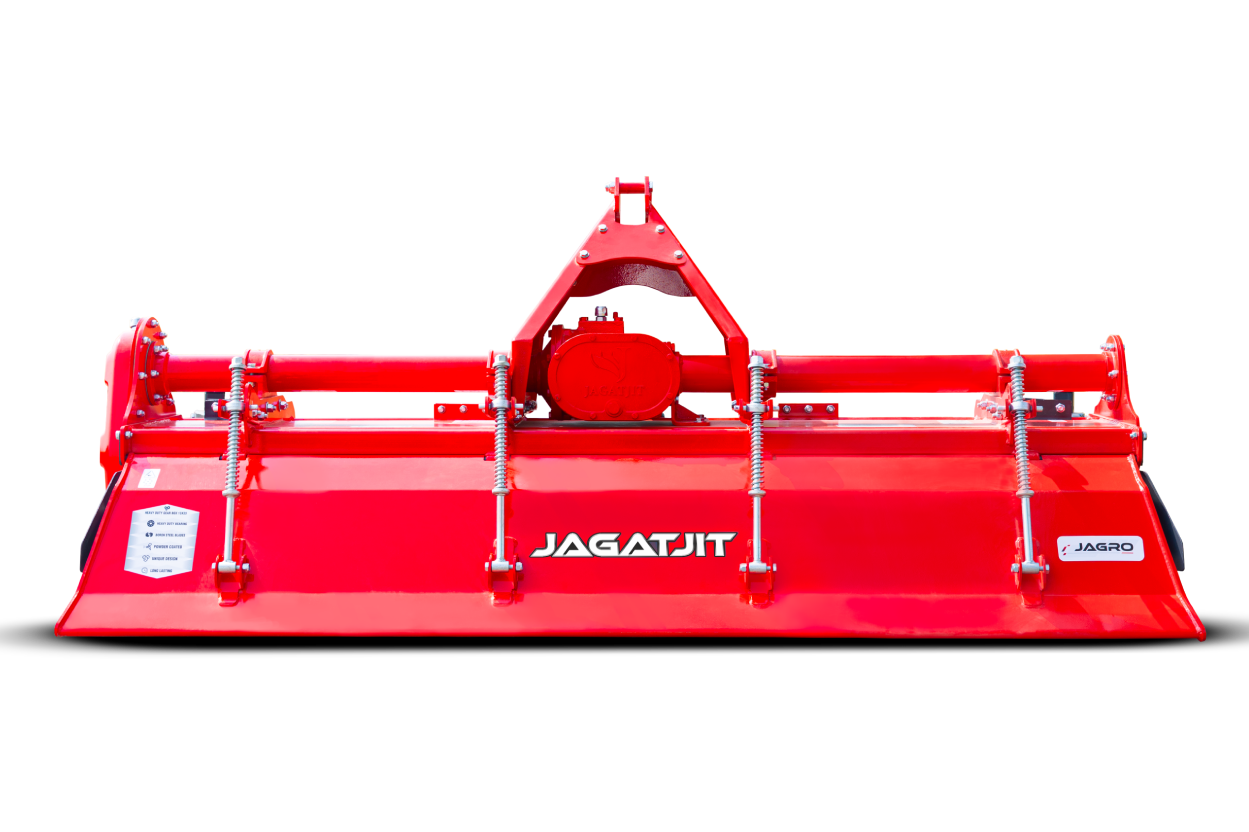

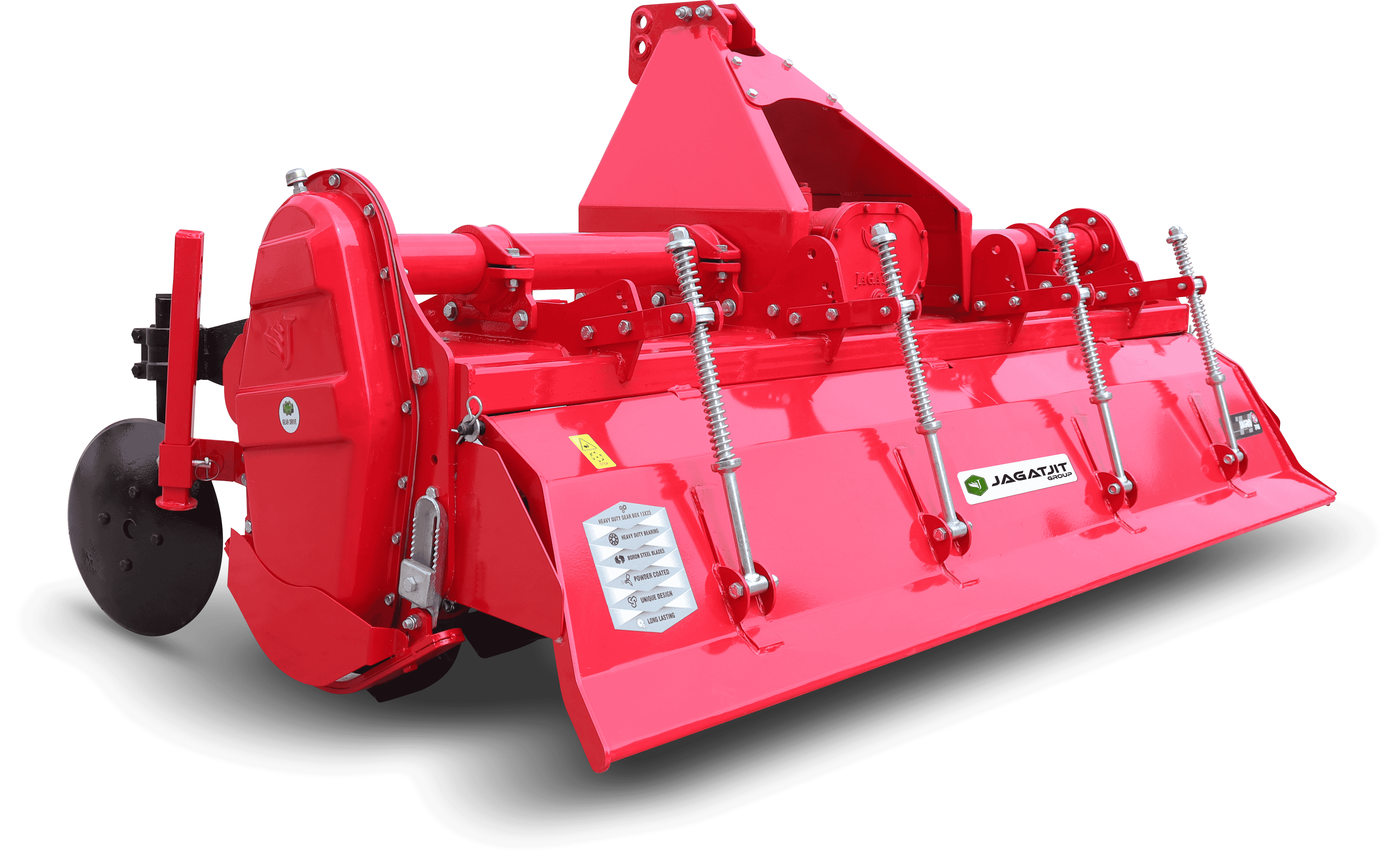

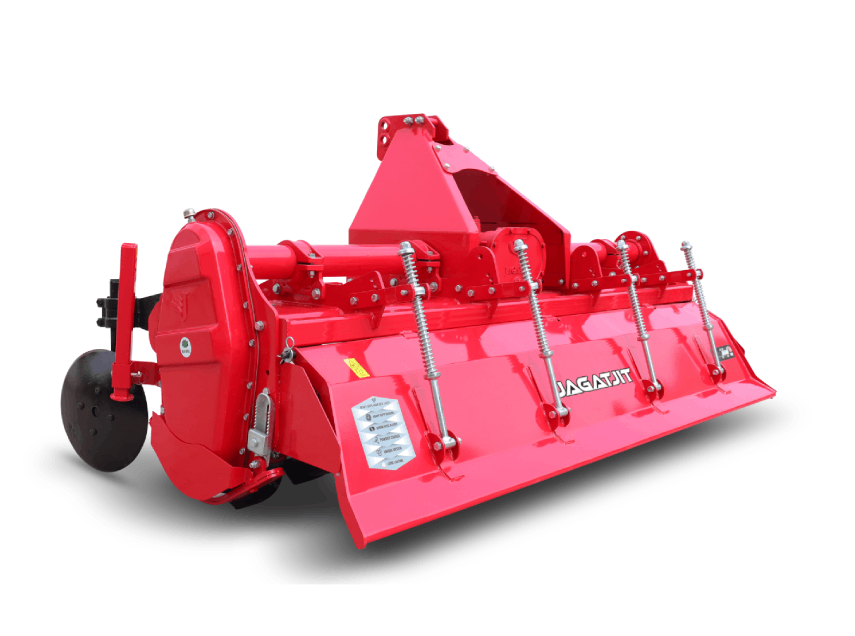

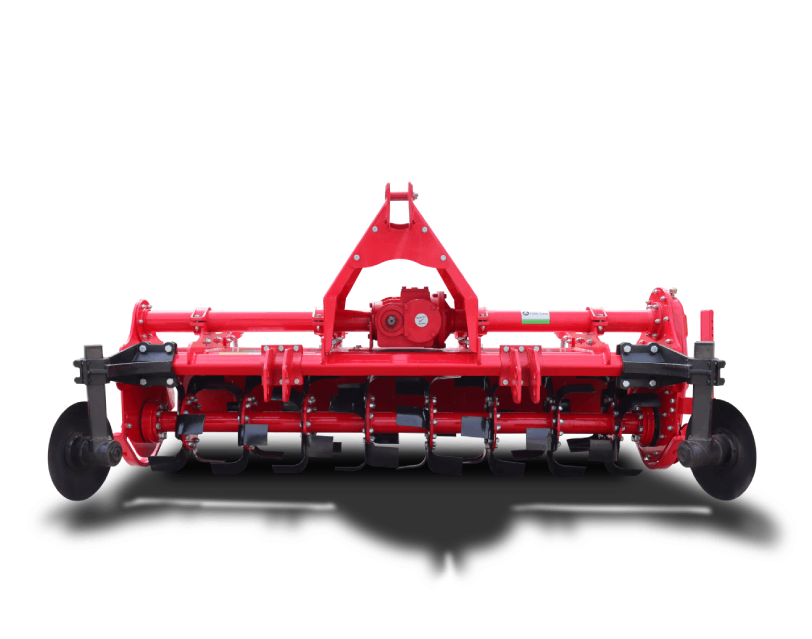

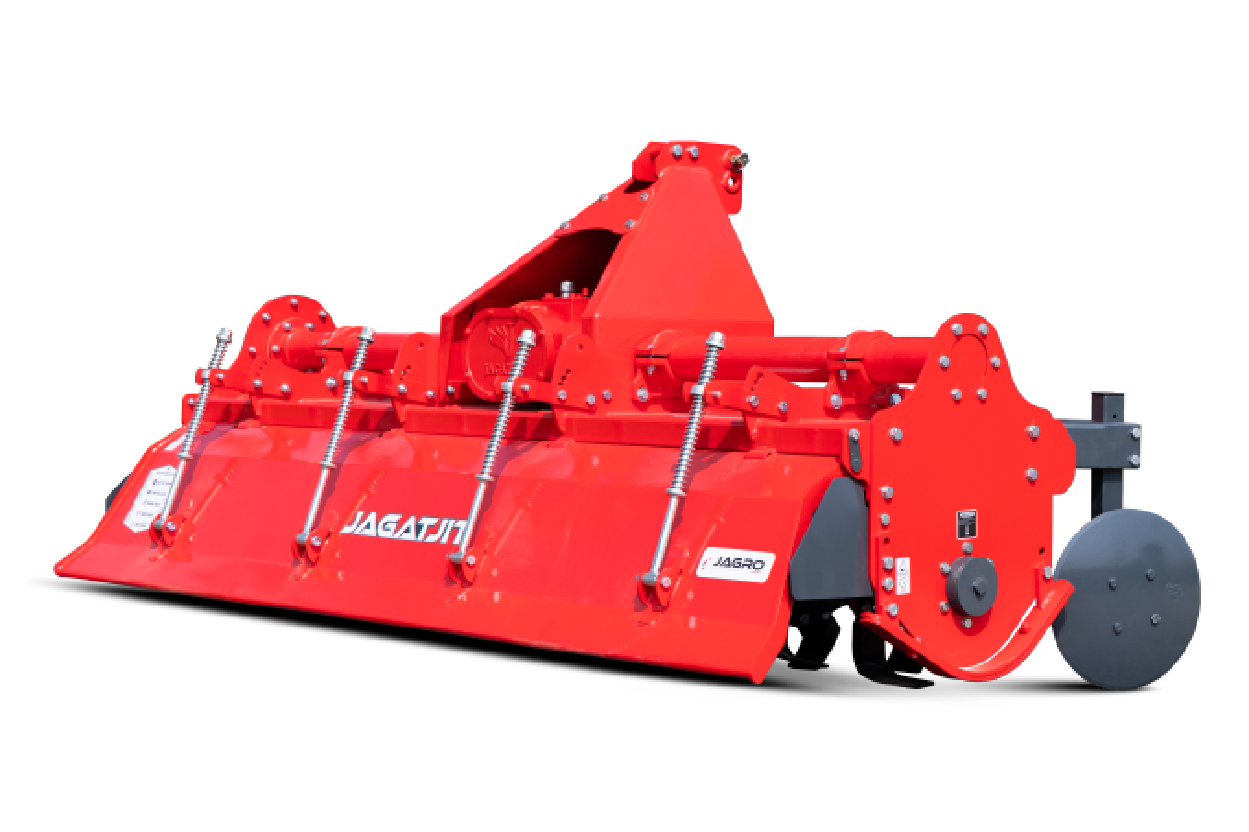

Jagatjit Group Rotary Tiller

Side gear drive in an oil bath which produces less friction and smooth operation.
It can loosen & aerate the soil up to 6 inches deep.
Heavy-duty PTO shaft with shear bolt for overload protection.
Our Rotavator puts less load on the tractor, which makes tillage fast and economical.
Heavy duty spring assembly in plank which ensures perfectly levelled and finished seedbed.

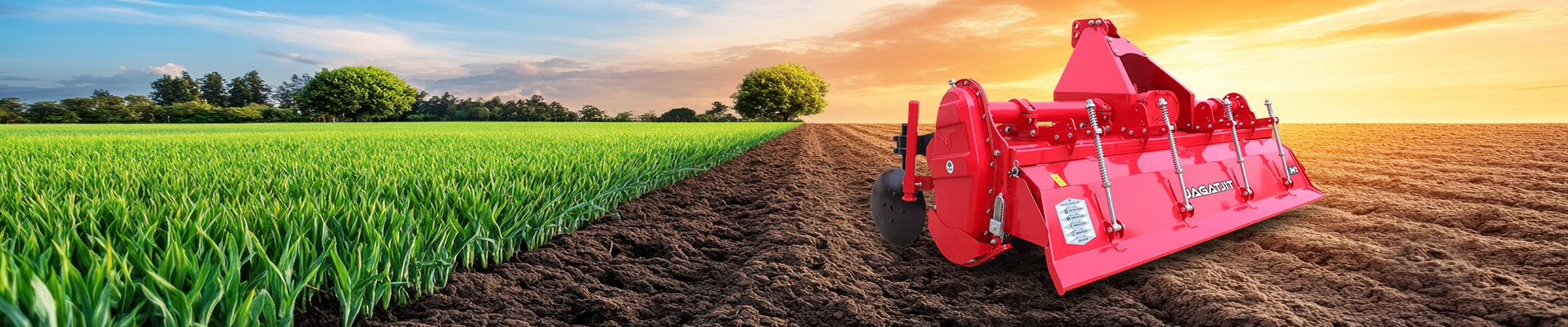

Jagro H2 Series

Jagro H3 Series

Description	4 ft	5 ft	6 ft	7 ft	8 ft	9 ft	10 ft
Working Width (mm)	1188	1424	1805	2000	2390	2585	2935
Type of Blade	L / C / J / LJF Type
Thickness of Blade (mm)	7 mm
No. of Blades	30/42	36/42	42/48	48/54	54/60	60/66	66/72
Weight (Kg, Approx)	390	410	440	500	590	630	670
Tractor Power (HP)	35 - 40	40 - 45	45 - 50	50 - 55	55 - 60	60 - 75	60 - 75
Overall Dimension (L x W x H, mm)	1530 x 1187 x 1200	1754 x 1187 x 1200	2135 x 1187 x 1200	2330 x 1187 x 1200	2720 x 1187 x 1200	2915 x 1187 x 1200	3265 x 1187 x 1200

Description	4 ft	5 ft	6 ft	7 ft	8 ft	9 ft	10 ft
Working Width (mm)	1188	1424	1805	2000	2390	2585	2935
Type of Blade	L / C / J / LJF Type
Thickness of Blade (mm)	7 mm
No. of Blades	30/42	36/42	42/48	48/54	54/60	60/66	66/72
Weight (Kg, Approx)	390	410	440	500	590	630	670
Tractor Power (HP)	35 - 40	40 - 45	45 - 50	50 - 55	55 - 60	60 - 75	60 - 75
Overall Dimension (L x W x H, mm)	1530 x 1187 x 1200	1754 x 1187 x 1200	2135 x 1187 x 1200	2330 x 1187 x 1200	2720 x 1187 x 1200	2915 x 1187 x 1200	3265 x 1187 x 1200
