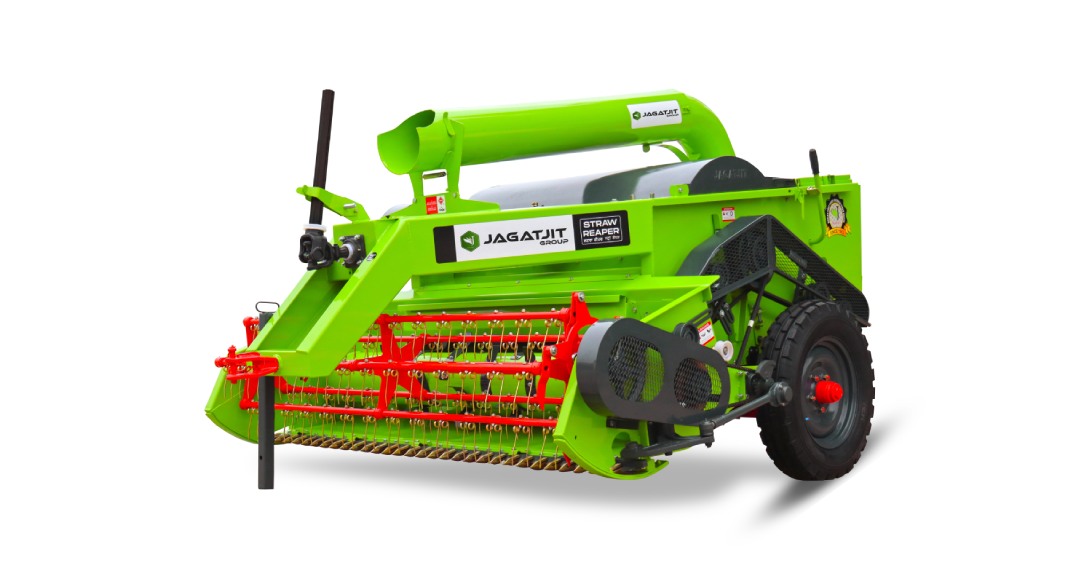

Straw Reaper

Pentagonal pickup reel

360° Rotating Chute

Heavy-Duty Gearbox

Jagatjit Straw Reaper is a tractor PTO operated implement best suited for reaping of standing wheat stubbles and collecting the bruised straw in a trolley. The straw collected is used as an animal feed.

*The company reserves the right to change specifications without prior notice.

Download E-Brochure

Key Features :

Pentagonal fabricated pickup reel for improved & reliable functionality and efficiency.
360-degree rotating chute fabricated from HRC steel.
Equipped with safety cover for various drives & belts.
Equipped with safety cover for various drives and belts.
Heavy duty gear box with 15x20 Pinion-Crown gear drive.

Variant	57"	60"	63"	66"
Main Drive	20-15 Gear drive			20-15
Working Width	2230 mm	2230mm	2535mm	2535mm
Cutter Bar Width	7.5 ft	7.5 ft	8.5 ft	8.5 ft
No. Of Blades In Thresher	288	320	320	320
No. Of Blades In Basket	36	40	40	40
Concave Availability	34-58 Sq. Bars
Tyre	6-50 &7-19
No. Of Blades In Cutter Bar	30	30	34	34
No. Of Fingers In Cutter Bar	15	15	17	17
Trolley Filling Time, minutes	25.	20.	18	18
Thresher Swing Ø	Ø 785 mm
Thresher Disc Ø	Ø 580 mm
Guide Drum Swing Ø	Ø 376 mm
Tractor Power, hp	50 & above	55 & above	60 & above	65 & above

Variant	57"	60"	63"	66"
Main Drive	20-15 Gear drive			20-15
Working Width	2230 mm	2230mm	2535mm	2535mm
Cutter Bar Width	7.5 ft	7.5 ft	8.5 ft	8.5 ft
No. Of Blades In Thresher	288	320	320	320
No. Of Blades In Basket	36	40	40	40
Concave Availability	34-58 Sq. Bars
Tyre	6-50 &7-19
No. Of Blades In Cutter Bar	30	30	34	34
No. Of Fingers In Cutter Bar	15	15	17	17
Trolley Filling Time, minutes	25.	20.	18	18
Thresher Swing Ø	Ø 785 mm
Thresher Disc Ø	Ø 580 mm
Guide Drum Swing Ø	Ø 376 mm
Tractor Power, hp	50 & above	55 & above	60 & above	65 & above
