Self Propelled Combine Harvester

Minimal Grain Loss

Hi-Performance Engine

Robust Cutter Bar

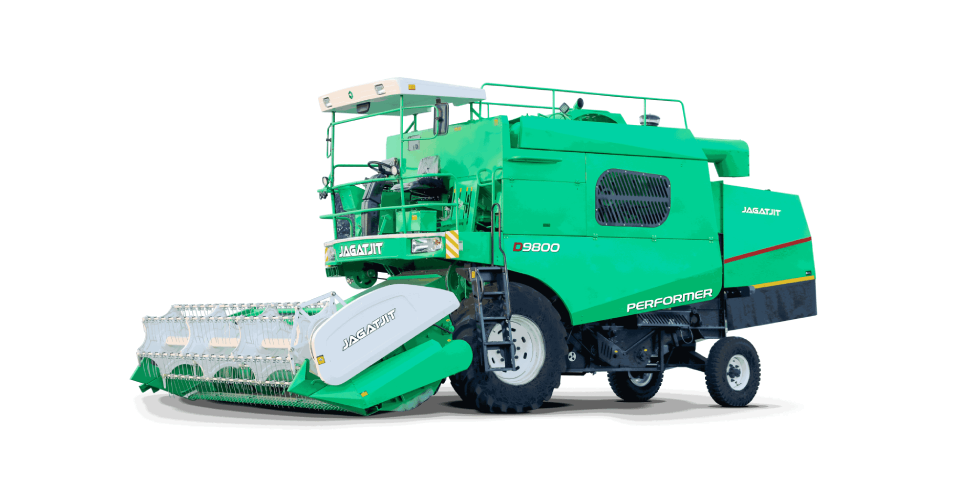

The Jagatjit D9800 Combine Harvester is a high-performance, self-propelled harvester designed to deliver exceptional efficiency and productivity in harvesting operations. Built with advanced technology and robust engineering, it ensures minimal grain loss, faster harvesting, and reduced operational costs, making it an ideal choice for progressive farmers.

*The company reserves the right to change specifications without prior notice.

Download E-Brochure

Key Features:

High-Performance Engine delivers powerful performance with optimized fuel efficiency, ensuring longer operational hours with lower running costs.
Heavy-Duty Cutter Bar ensures precise cutting, reducing grain loss and increasing overall yield efficiency.
Advanced Threshing & Separation System guarantees clean grain separation, with minimal impurities, improving grain quality.
Multi-Crop Capability allows harvesting of wheat, paddy, maize, soybean, mustard, and more, making it a versatile investment for farmers.
Optimized Grain Collection System minimizes wastage and enhances grain recovery, increasing profitability.
User-Friendly Controls & Ergonomic Design provide ease of operation, reducing operator fatigue and improving productivity.
Fuel-Efficient Technology lowers fuel consumption, making harvesting operations cost-effective.

Description	Parameters
Engine Model	H6C41323 (TREM-IV) Ashoka Leyland
Engine Power	133 HP @ 2300 rpm
No. of Cylinders	6
Air Cleaner	Combination of Dry
Cooling System	Water Cooled
Type of Clutch	Single, Heavy Duty Dry Clutch
Clutch Diameter	330 mm
No. of Gears	4 Forward + 1 Reverse
Speed (km/hr)	1st Gear: 2 km/h, 2nd Gear: 4 km/h, 3rd Gear: 10 km/h, 4th Gear: 10.35 km/h, Reverse: 4 km/h
Concave Clearance	Front: 18-30 mm (Wheat), 8-46 mm (Paddy)
Rear Clearance	7-12 mm (Wheat), 4-16 mm (Paddy)
Concave Adjustment	Mechanical
No. of Straw Walkers	5
Straw Walker Length	3770 mm
Straw Walker Width	234 mm
Upper Sieve Area	1.33 m²
Lower Sieve Area	1.35 m²
