Dung Briquette Machine

Energy-efficient operation

No chemical binders

Variable log size

Turning Animal Waste into Clean Energy

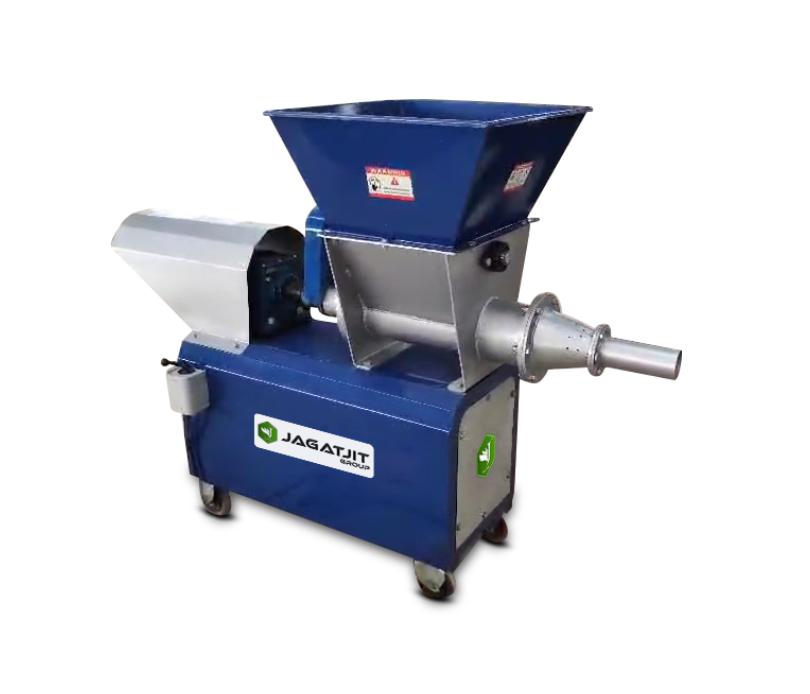

The Jagatjit Dung Briquette Machine is an efficient and eco-conscious solution for converting animal dung into compact fuel logs. This machine is specially designed for farms, gaushalas, and rural enterprises aiming to repurpose organic waste into an affordable and sustainable energy source. It operates without chemical binders, delivering dense, slow-burning briquettes suitable for household cooking, heating, or use in small-scale industries.

*The company reserves the right to change specifications without prior notice.

Download E-Brochure

Key Features :

Processes semi-dried dung into high-density fuel without the need for additives.
Capable of producing consistent briquettes at an optimal rate, ensuring steady productivity.
Allows for variation in log size based on user preference or fuel application.
Mounted on a frame with wheels for easy relocation across different sites or farms.
Designed to operate on minimal power, making it economical in rural settings.

Parameter	Specification
Production Capacity	Up to 400 kg/hr
Motor Power	5 hp
Raw Material	Cow or buffalo dung
Fuel Output	Cylindrical/Square logs
Portability	Wheeled frame for movement

Parameter	Specification
Production Capacity	Up to 400 kg/hr
Motor Power	5 hp
Raw Material	Cow or buffalo dung
Fuel Output	Cylindrical/Square logs
Portability	Wheeled frame for movement

Land Area Required

Dualfeed 90 Specifications

Consumable Parts Detail

Particulars	Description
Total Area Required	1,000–4,000 Square Feet
Machine Buildup Area	20 FT. X 15 FT. (L X B) (For One Machine) 20 FT. X 25 FT. (L X B) (For Two Machines)
Buildup Shed Area for Storage of Briquettes	50 FT. X 15 FT. (L X B) 30 FT. Height
Foundation Required	Yes
Foundation Drawing	Will be provided by Jagatjit Group®
Foundation Road with Bolts for Machine & Electrical Main Moto	Will be provided by Jagatjit Group®

Particulars	Description
Briquette Press Model	Dual Feed ™ Jagatjit Group® 90
Production Capacity	On briquettes up to 2,400 kg/hr (on granulated raw-material only) On pellets up to 1500 kg/hr (on granulated raw-material only) Production may vary; depends on the combination of feedstock
Power Required (Total Power Required: 92 HP / 67.90 kW)	1 HP electric motor on oil lubrication system to maintain the oil flow 75 HP electric main motor attached with pulley to drive machine flywheels 5 HP x 2 electric motor on side feeder for feeding the material inside the machine 3 HP electric motor with reduction gear on material drifter 3 HP with VFD drive to control the in-feed speed of raw material
Machine RPM	200 RPM
Finished Good Diameter	Biomass briquettes: 90 mm (± 5%) Biomass pellets: 8 mm, 10 mm & 12 mm
Finish Good Shape	Cylindrical
Finish Briquette Length	Briquettes 20 mm to 350 mm approx. Biomass pellets 10 mm to 50 mm approx. (Length of final product may vary as it depends on the raw-material mix, its blend proportion & type)
Number of Reduction Gears Used	4 gears used for controlling the speed and maintaining the torque of different shafts
Sensor System	Equipped to safeguard from any mechanical failure, (in the case of bush heating, due to non-supply of oil, etc.)
Raw Material In-Feed Size	Granulated raw material only, if size is bigger than it needs to be grinded before feeding into the machine
Raw Material Moisture	Moisture in material should be between 8%-12%
Manpower Required	Operator-1, Labour-2
Visibility & Maintenance	Mirror acrylic sheet is installed on machine's top body to maintain the visibility of oil & inner machine moving parts
Cooling System	To cool down the oil temperature and other machine body parts
Oil	Machine oil chamber will be full of required amount of oil
Fixation of Machine	Foundation rods will be provided with bolts to fix the machine
Nylon Belts (V-Belts)	7 nylon belts (C grade) to drive the machine wheels with safety guards 2 nylon belt (C grade) to drive the in-feed conveyor with safety guards
Rotating Parts Safety Guards	Will be provided with machine to safeguard personal working from rotating wheels, motor pullies, etc.
Parts Attached	Die holder attached with all the inner parts & cooling water pipes Feeder box, RAM & other consumables parts are attached to the machine
Screw Conveyor	1 screw conveyor (20 feet long) with the reduction gear (for in feeding the material into machine)
Cooling Line	1 cooling line (15 feet long) with 3 stands
Electrical Motors	Make: Siemens, Crompton
Electrical Panel	For operating and control of machine (Make: Schneider)
Electrical VFD	1No. used on in-feed screw conveyor, Make: Schneider
Electrical Cable & Wires	From briquette machine to electric panel 20 feet long
Reduction Gears	Make: Spaggiari/Gear House/Motovario
Bearings	Make: NRB, HKG/NBC/SKF
Tool Kit	For calibration of main components

Sr. No.	Item Name	In Machine (Qty.)	Extra With Machine (Qty.)
01.	Pellet Die	1 PC	-
02.	Briquette Die & Collar	-	1 PC
03.	Split Pipe	-	1 PC
04.	Ram Cap	1 PC	1 PC
05.	Ram Cap Type	1 PC	-
06.	Tikki with Tikki Bolt	1 PC	4 PC
