Hammer Mill

Versatile Biomass Processing

Energy-Efficient Grinding

Cost-efficient operation

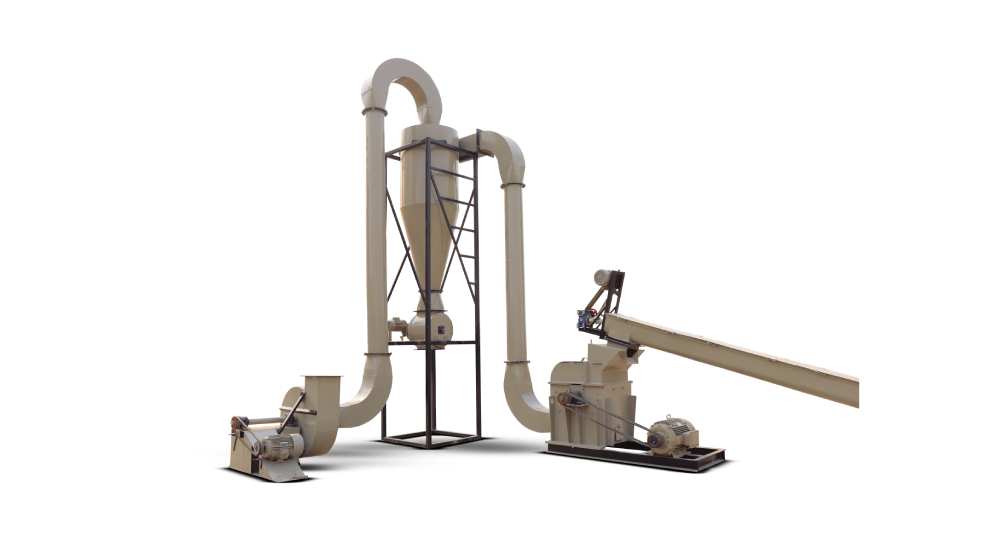

The Jagatjit Hammer Mill is designed for grinding, crushing, and pulverizing biomass materials into fine particles. This machine features heavy-duty rotating hammers that efficiently reduce raw material size, making it ideal for briquette and pellet production.

*The company reserves the right to change specifications without prior notice.

Download E-Brochure

Key Features :

Processes various materials, including wood chips, groundnut shells, rice husk, and crop residues.
Adjustable perforated screen ensures uniform particle size (5mm - 10mm).
High-speed hammer rotation for quick and efficient grinding.
Robust steel construction for durability and long life.
Low power consumption, ensuring cost-effective operations.
This high-performance grinder is essential for industries looking to maximize efficiency in biomass processing.

Model	Production Capacity	Total Power Required
Jagatjit Hammer Mil -JHM 1.3	Upto-1000 kg/hr	56 hp/ 41.75 kW
Jagatjit Hammer Mil -JHM 2.0	Upto-2000 kg/hr	72 hp/ 53.69 kW
Jagatjit Hammer Mil -JHM 2.5	Upto-2000 kg/hr	78 hp/ 58.16 kW
Jagatjit Hammer Mil -JHM 3.0	Upto-3000 kg/hr	88 hp/62.62 kW
Jagatjit Hammer Mil -JHM 5.0	Upto-5000 kg/hr	153.5 hp/114.46 kW

Model	Production Capacity	Total Power Required
Jagatjit Hammer Mil -JHM 1.3	Upto-1000 kg/hr	56 hp/ 41.75 kW
Jagatjit Hammer Mil -JHM 2.0	Upto-2000 kg/hr	72 hp/ 53.69 kW
Jagatjit Hammer Mil -JHM 2.5	Upto-2000 kg/hr	78 hp/ 58.16 kW
Jagatjit Hammer Mil -JHM 3.0	Upto-3000 kg/hr	88 hp/62.62 kW
Jagatjit Hammer Mil -JHM 5.0	Upto-5000 kg/hr	153.5 hp/114.46 kW

Land Area Required

Dualfeed 90 Specifications

Consumable Parts Detail

Particulars	Description
Total Area Required	1,000–4,000 Square Feet
Machine Buildup Area	20 FT. X 15 FT. (L X B) (For One Machine) 20 FT. X 25 FT. (L X B) (For Two Machines)
Buildup Shed Area for Storage of Briquettes	50 FT. X 15 FT. (L X B) 30 FT. Height
Foundation Required	Yes
Foundation Drawing	Will be provided by Jagatjit Group®
Foundation Road with Bolts for Machine & Electrical Main Moto	Will be provided by Jagatjit Group®

Particulars	Description
Briquette Press Model	Dual Feed ™ Jagatjit Group® 90
Production Capacity	On briquettes up to 2,400 kg/hr (on granulated raw-material only) On pellets up to 1500 kg/hr (on granulated raw-material only) Production may vary; depends on the combination of feedstock
Power Required (Total Power Required: 92 HP / 67.90 kW)	1 HP electric motor on oil lubrication system to maintain the oil flow 75 HP electric main motor attached with pulley to drive machine flywheels 5 HP x 2 electric motor on side feeder for feeding the material inside the machine 3 HP electric motor with reduction gear on material drifter 3 HP with VFD drive to control the in-feed speed of raw material
Machine RPM	200 RPM
Finished Good Diameter	Biomass briquettes: 90 mm (± 5%) Biomass pellets: 8 mm, 10 mm & 12 mm
Finish Good Shape	Cylindrical
Finish Briquette Length	Briquettes 20 mm to 350 mm approx. Biomass pellets 10 mm to 50 mm approx. (Length of final product may vary as it depends on the raw-material mix, its blend proportion & type)
Number of Reduction Gears Used	4 gears used for controlling the speed and maintaining the torque of different shafts
Sensor System	Equipped to safeguard from any mechanical failure, (in the case of bush heating, due to non-supply of oil, etc.)
Raw Material In-Feed Size	Granulated raw material only, if size is bigger than it needs to be grinded before feeding into the machine
Raw Material Moisture	Moisture in material should be between 8%-12%
Manpower Required	Operator-1, Labour-2
Visibility & Maintenance	Mirror acrylic sheet is installed on machine's top body to maintain the visibility of oil & inner machine moving parts
Cooling System	To cool down the oil temperature and other machine body parts
Oil	Machine oil chamber will be full of required amount of oil
Fixation of Machine	Foundation rods will be provided with bolts to fix the machine
Nylon Belts (V-Belts)	7 nylon belts (C grade) to drive the machine wheels with safety guards 2 nylon belt (C grade) to drive the in-feed conveyor with safety guards
Rotating Parts Safety Guards	Will be provided with machine to safeguard personal working from rotating wheels, motor pullies, etc.
Parts Attached	Die holder attached with all the inner parts & cooling water pipes Feeder box, RAM & other consumables parts are attached to the machine
Screw Conveyor	1 screw conveyor (20 feet long) with the reduction gear (for in feeding the material into machine)
Cooling Line	1 cooling line (15 feet long) with 3 stands
Electrical Motors	Make: Siemens, Crompton
Electrical Panel	For operating and control of machine (Make: Schneider)
Electrical VFD	1No. used on in-feed screw conveyor, Make: Schneider
Electrical Cable & Wires	From briquette machine to electric panel 20 feet long
Reduction Gears	Make: Spaggiari/Gear House/Motovario
Bearings	Make: NRB, HKG/NBC/SKF
Tool Kit	For calibration of main components
